Grout is not what keeps water out of a shower. It is a decorative, semi-flexible filler that sits between tiles and is porous by design, so it can flex slightly without cracking. The real barrier against water is the waterproofing membrane installed underneath the tile, and when that membrane is missing, too thin, or skipped at three specific spots, water gets behind the wall no matter how good the tile job looks.
Almost every shower leak traces back to one of three places: the floor-to-wall joint, the curb, or the inside corners of a niche. None of those are grout problems. They are membrane problems, and they are fixable with a liquid waterproofing membrane and a strip of fabric reinforcement at each spot before a single tile goes up.
In This Guide
- Why grout alone won't stop a shower leak
- The 3 areas where every shower leak actually starts
- How to waterproof a shower membrane, step by step
- Sheet membrane vs liquid membrane
- Common shower waterproofing mistakes
- FAQ
Why Grout Alone Won't Stop a Shower Leak
Grout is a cement-based joint filler, not a waterproofing product. It is designed to lock tiles in place and absorb the small amount of movement between them, and it will absorb water rather than block it. Even fully cured, sealed grout is not rated as a waterproofing layer on its own.
Older mud-set showers accounted for this by hiding a separate pan liner and weep holes underneath the mortar bed, precisely because the visible tile and grout surface was never expected to hold water back. Modern showers use a membrane behind or under the tile instead, but the principle has not changed: the waterproofing plane is not the surface you see. It is the layer underneath it, and that layer only works if it is continuous at every joint, corner, and transition. General building-science coverage of shower membrane prep, including This Old House's guide to membrane systems, backs up the same point: waterproofing goes on before the tile, not after.
The 3 Areas Where Every Shower Leak Actually Starts
A shower wall or floor field rarely fails on its own. The failures cluster at three predictable spots where the membrane has to do more than just sit flat.
1. The Floor-to-Wall Joint
This is where the shower floor and the wall meet, and it is not a static joint. It flexes slightly as framing settles and as the slab and the wall move independently over time. A membrane coat applied straight across that joint without reinforcement can crack the first time it flexes. Fabric reinforcement embedded wet into the membrane bridges that movement instead of fighting it.
2. The Shower Curb
The curb takes constant splashing and pooling water, and it has three exposed faces: the top and both sides. Coating only the front face of the curb and skipping the top or the inside face is one of the most common gaps in a DIY waterproofing job. The membrane needs to wrap fully over the top and down both sides, then overlap the floor and wall membrane so there is no seam for water to find.
3. Niche Corners
A recessed shower niche can have up to eight inside corners packed into a couple of square feet, more corner linear footage than the rest of the shower combined. Every one of those corners needs a fabric band or a preformed corner piece embedded in the membrane. Skip even one corner and that is where the leak starts, often behind tile that looks perfectly finished on the surface.

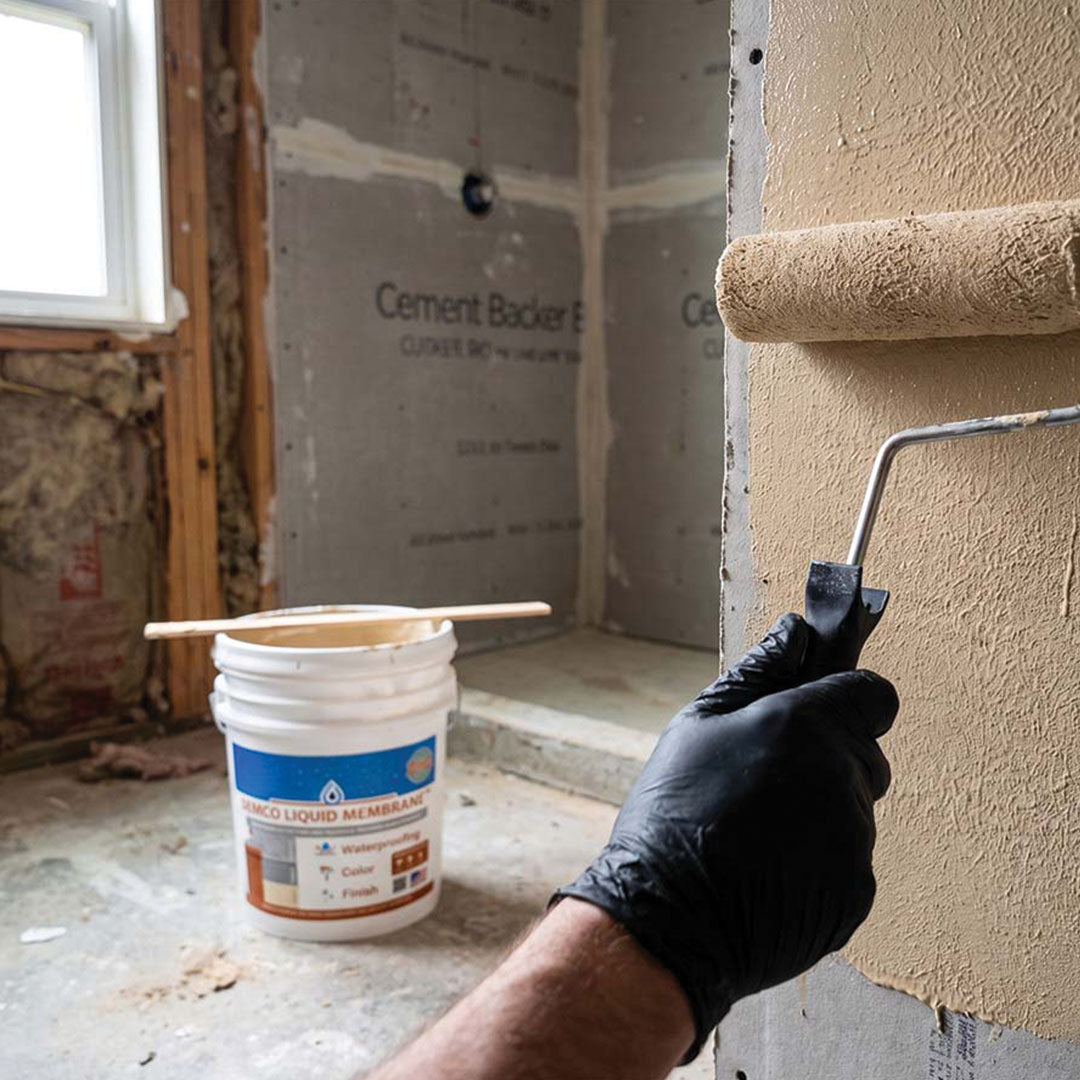

Embed at the floor-to-wall joint, curb, and every niche corner between two coats of membrane for lasting, crack-free waterproofing.
How to Waterproof a Shower Membrane, Step by Step
The same spec checklist we use to judge any waterproofing membrane, walls, floor, or basement, applies here too. Elongation percentage and cure time matter just as much in a shower as they do below grade; see our basement waterproofing membrane buyer's guide for how to read a product's data sheet before you buy.
- Prep the substrate. Cement board or a foam waterproofing board, clean, dry, and dust-free, with joints taped. If you are tiling over drywall instead of cement board anywhere in the project, treat those seams the way our drywall waterproofing FAQ describes, taped, sanded, and sealed before any membrane goes on.
- Cut fabric reinforcement strips for the floor-to-wall joint, both sides and the top of the curb, and every niche corner before you open the membrane pail.
- Embed the fabric wet. Apply a base coat of liquid membrane at each joint and corner, lay the fabric into the wet coat, and smooth out air bubbles with a brush or roller.
- Apply the first full coat over the entire wall and floor area, working over the reinforced joints as you go so everything ties together as one continuous layer.
- Let the first coat cure per the label, typically several hours to a full day depending on temperature and humidity.
- Apply the second full coat for complete film thickness, feathering the edges so there is no thin spot at the transitions.
- Flood test or water-test before tiling. Fill the pan with about an inch of water for 24 hours, or run water over the walls and check for damp spots, then tile once the membrane has fully cured.
Single-component, water-based membrane. 400+ PSI adhesion, 1,300% elongation, low odor, rolls on directly over cement board or prepped drywall.
Sheet Membrane vs Liquid Membrane: Which Should You Use in a Shower?
Shower waterproofing generally comes down to two approaches: pre-formed sheet or foam board systems, and paint-applied liquid membranes. Neither is automatically wrong, they trade off differently at the exact spots that matter most.
| Factor | Sheet / foam board systems | Liquid membrane (SEMCO's category) |
|---|---|---|
| Fitting a niche or curved shape | Needs precise cutting and factory corner pieces | Wraps into any shape, no extra cutting |
| Seams | Multiple seams, each needs its own sealing | Seamless once cured, aside from reinforced joints |
| DIY learning curve | Moderate, precision cutting matters | Low, roller or brush application |
| Material waste on odd layouts | Higher, offcuts from cutting to fit | Lower, coats only where you roll it |
| Where it still needs reinforcement | Seams and corners, per manufacturer tape | Floor-to-wall joint, curb, and niche corners with fabric |
Sheet and foam board systems are precut and consistent, but every seam, especially around a niche, is a spot that has to be taped and sealed correctly by hand. A liquid membrane skips the cutting and seaming entirely and wraps directly into a niche or curb, provided the fabric reinforcement step at the three high-risk areas is not skipped. The areas that fail are the same either way. The difference is how much of the waterproofing depends on precise cutting versus careful coating.
Common Shower Waterproofing Mistakes That Cause Leaks
- Skipping fabric at niche corners. Every inside corner of a niche is a separate leak risk, not just the two most obvious ones.
- Coating only the front face of the curb. The top and inside face take just as much water as the face you see.
- Tiling before the membrane is fully cured. Trapping uncured membrane under tile and thinset can keep it from reaching full film strength.
- Treating grout or a grout sealer as the waterproofing layer. Sealed grout resists staining, it does not replace a membrane underneath.
- Not overlapping the wall and floor membrane at the joint. A gap here, even a small one, defeats the purpose of reinforcing it in the first place.
Frequently Asked Questions
Does grout waterproof a shower?
No. Grout is a joint filler between tiles, not a waterproofing product, and it will absorb water rather than block it even when sealed. The waterproofing membrane installed underneath the tile is what actually stops water.
Do I still need a membrane if I'm using cement board?
Yes. Cement board resists water damage to the board itself, but it is not waterproof at the seams, fasteners, or corners. A liquid membrane over the cement board, reinforced at the floor-to-wall joint, curb, and niche corners, closes those gaps.
How long does shower waterproofing membrane need to cure before tiling?
It depends on temperature and humidity, so always check the product label, but most water-based liquid membranes need each coat to dry fully before recoating, and full cure before tiling typically runs from about a day up to several days.
Why do shower niches leak more than the rest of the wall?
A niche packs up to eight inside corners into a small recessed box, far more corner linear footage per square foot than a flat wall. Every corner is a place the membrane has to change direction, and each one needs its own fabric reinforcement.
Can I use a liquid membrane on both the shower floor and walls?
Yes, a single liquid membrane system is typically rated for both the pan and the walls, which is part of why it wraps continuously through the floor-to-wall joint instead of relying on two different products meeting at a seam.
Is a sheet membrane or a liquid membrane more durable long term?
Both can last for the life of the shower when installed correctly. Sheet and foam systems depend on every seam being sealed correctly at install; liquid membranes depend on full, even coverage and reinforcement at the joint, curb, and corners. Durability comes down to installation quality more than the category itself.
Ready to Waterproof Your Shower the Right Way?
SEMCO Liquid Membrane and Fabric Reinforcement seal the floor-to-wall joint, curb, and every niche corner before a single tile goes up.
