Crawl space waterproofing means sealing the foundation walls and ground beneath your home so ground moisture, humid air, and musty odors stop moving into the house above it. A full DIY approach has three parts: seal the foundation walls and any cracks with a liquid waterproofing membrane, cover the ground with a vapor barrier, and seal every seam and penetration so the space is effectively closed off from ground moisture. A two-person crew can encapsulate roughly 1,000 square feet in 8 to 10 hours. Here's the full process, including where most DIYers cut corners and end up doing it twice.
In This Guide
- What causes crawl space moisture and musty odors
- What you'll need
- Step 1: Inspect and prep the crawl space
- Step 2: Seal foundation walls and cracks
- Step 3: Install the ground vapor barrier
- Step 4: Vents, pipes, and humidity control
- Common mistakes to avoid
- FAQ
What Causes Crawl Space Moisture and Musty Odors?
Bare earth in an unsealed crawl space releases moisture directly into the air above it constantly, even when the ground looks dry. That moisture condenses on cool foundation walls and framing, feeds mold and mildew, and rises into the living space above as the "musty basement smell" homeowners often notice on the main floor, not just downstairs. Left alone, it leads to wood rot in floor joists, corrosion on ductwork and mechanicals, and higher humidity throughout the house. Homeowners researching the smell often describe going back and forth on forums between blaming the HVAC system, old carpet, or "just an old house" before realizing the crawl space itself is the source.
What You'll Need
| Material | Used for |
|---|---|
| SEMCO Liquid Membrane | Sealing foundation walls, cracks, and masonry joints |
| SEMCO Fabric Reinforcement | Bridging active cracks and wall/floor transitions |
| Ground vapor barrier sheeting | Covering exposed earth on the crawl space floor |
| Seam tape and termination bars | Sealing vapor barrier overlaps and wall edges |
| Utility knife, drill with masonry bit, work light, knee pads | General installation |
Step 1: Inspect and Prep the Crawl Space
Before any sealing starts, clear debris, check for standing water and fix the drainage issue causing it if you find any, and do a quick wellness check on any exposed pipes and wiring. Decide now whether you'll condition the space (bring it inside your home's thermal envelope) or just vent-seal it, since that affects how you handle vents in Step 4.

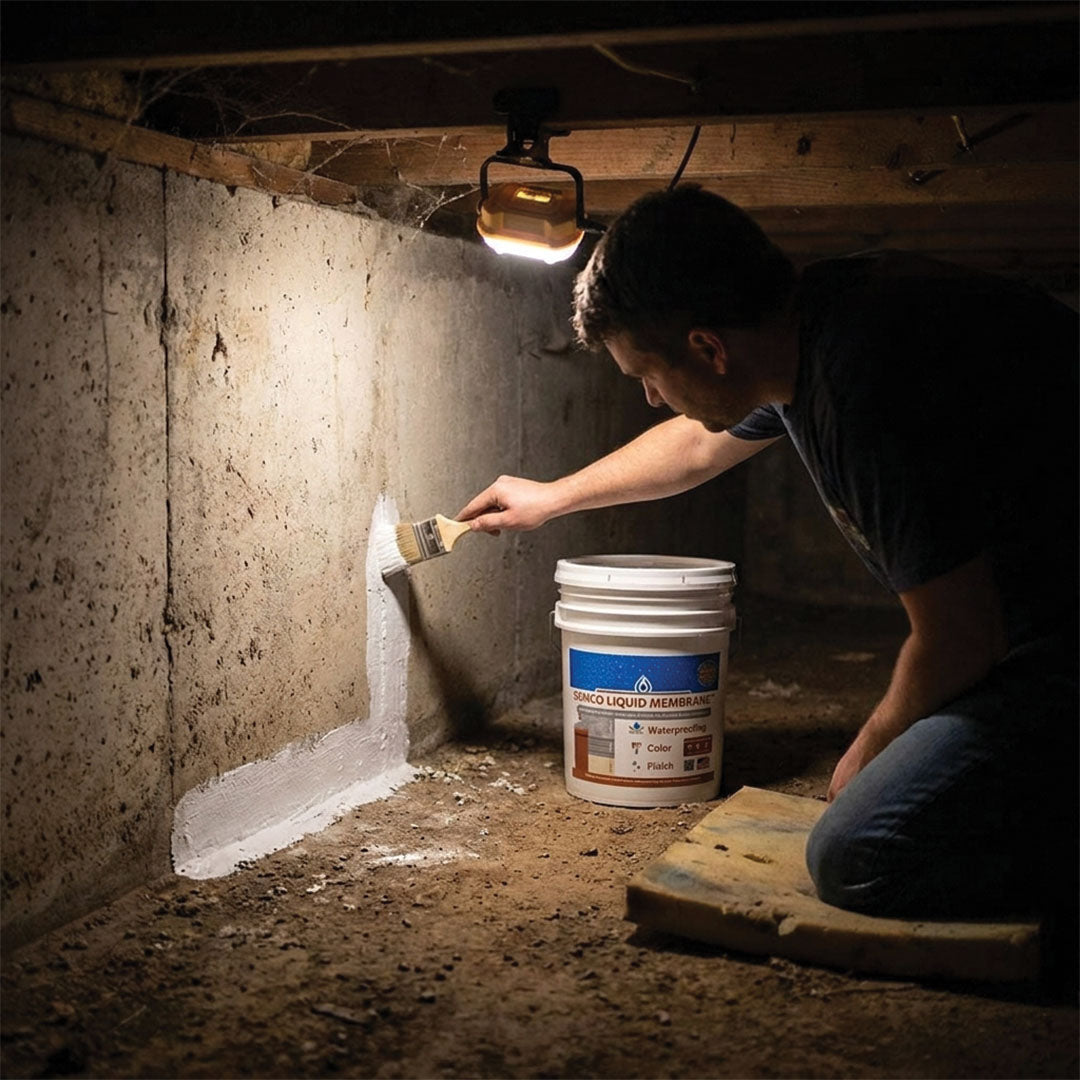

Step 2: Seal Foundation Walls and Cracks With a Liquid Membrane
This is the step that actually stops moisture from migrating through masonry rather than just covering the ground. Clean the foundation walls of loose debris and efflorescence, then apply SEMCO Liquid Membrane directly to the masonry with a roller or brush. At any visible crack, cold joint, or the wall-to-floor transition, embed a strip of SEMCO Fabric Reinforcement into a first coat of membrane, then cover it with a second coat. The fabric is what lets the seal move with minor settling instead of cracking again the first time the foundation shifts.
Single-component, water-based membrane rated 234 PSI adhesion, 1300% elongation. From $26.80, or $0.43/sq ft on a 5-gallon pail.
Bridges cracks, cold joints, and wall-to-floor transitions so the membrane seal can move without splitting. From $60.15.
Step 3: Install the Ground Vapor Barrier
Once the walls are sealed and cured, roll vapor barrier sheeting across the entire crawl space floor. Overlap every seam by at least 6 inches and tape it, since anything less compromises the seal. Run the barrier up the walls a few inches and secure it with termination bars or double-sided tape, leaving roughly a 3-inch gap below the top of the wall so you can still do periodic termite and moisture inspections. Cut relief slits around support columns so the barrier lays flat instead of tenting.
Step 4: Vents, Pipes, and Humidity Control
Cut detailed patches around every pipe and utility penetration and tape them down individually rather than trying to cut one barrier sheet around all of them. If you're fully encapsulating (versus just sealing walls and floor), decide on your ventilation strategy now: some homes seal crawl space vents and add a dehumidifier or conditioned air, others keep passive venting. That decision affects your local code compliance, so check requirements in your area before closing vents permanently.
Common Mistakes to Avoid
- Skipping wall sealing and going straight to the floor barrier. A ground vapor barrier alone doesn't stop moisture that's wicking through masonry walls.
- Less than 6-inch seam overlap on the vapor barrier, which is the single most common reason a "sealed" crawl space still reads humid.
- Loose sealing around pipes and posts, which gives moisture an easy path around an otherwise good seal.
- Not letting the membrane cure fully before laying the floor barrier on top of freshly coated walls.
Frequently Asked Questions
How long does DIY crawl space encapsulation take?
Roughly 8 to 10 hours for two people to fully encapsulate about 1,000 square feet, including wall sealing and the ground vapor barrier.
Do I need to seal the walls if I'm already installing a vapor barrier?
Yes. A floor vapor barrier stops moisture from the ground, but block and poured concrete walls can still wick moisture through the masonry itself. Sealing both is what actually stops the musty smell for good.
Can I use the same membrane on crawl space walls and CMU block walls elsewhere in the house?
Yes, SEMCO Liquid Membrane is applied the same way on CMU block, poured concrete, and other common foundation materials.
Will encapsulating my crawl space actually get rid of the musty smell upstairs?
In most cases, yes, since the smell is usually driven by moisture and mold in the crawl space migrating upward. If odor persists after a full seal, check for an unrelated moisture source like a plumbing leak.
Should I encapsulate before or after fixing exterior drainage issues?
Fix drainage first. Encapsulating over an active water intrusion problem just traps the symptom instead of solving it.
If your foundation includes block walls elsewhere in the house, our CMU wall waterproofing guide covers that process in more depth, and if you're tackling the basement above this crawl space too, see our guide to waterproofing a basement from the inside.
